AA7A Home Page

Home Page of the Amateur Radio Operator Ned Stearns, AA7A


Here I am making repairs on a VHF array atop the main tower.  I have managed to maintain an effective VHF station in Phoenix for almost 40 years.


Operating with Robert, 3B9FR. We met while I was on a DXpedition to Rodriques Island in 1999 operating as 3B9R.

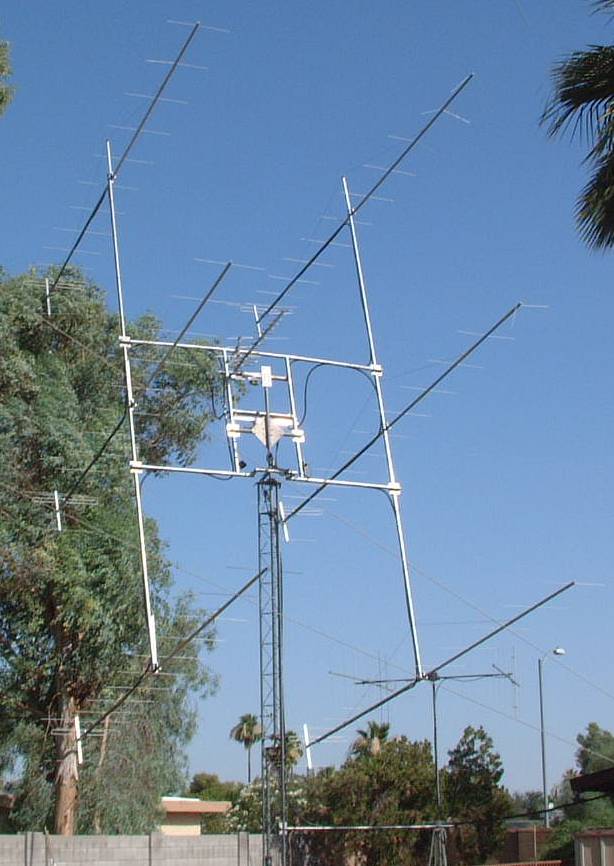

One of my many ham radio passions is making contacts around the world by bouncing signals off the moon (EME). This is a view of my handmade 2m EME station.

Recently, I have taken to traveling to Africa in November every year in order to participate in the CQ Worldwide DX CW Contest with the VooDoo Contest Group. In 2005 and 2006, I operated with this contest group in the West African nation of Mali. Pictured with me on the left in the 2006 event are Vince Thompson (K5VT), Fred Handscombe (G4BWP), Mike Fulcher (KC7V), Roger Western (G3SXW), Lee Finkel (KY7M), John Warburton (G4IRN) and Robbie Ferguson (GM3YTS). In addition to participating in the CQWW DX contest event, we also travel throughout the country when we can and also participate in other specialized ham radio activities such as RTTY or EME. In 2006, we assembled a portable 2m EME station and made a number of contacts around the world to the delight of the VooDoo Contest team as well as some lucky 2m EME operators.


AA7A Information

Band

States Worked Grids Worked Countries Worked
6 meters 50 900 130 (6m DXCC #523)
2 meters 50 770 150 (2m DXCC #33)
1.25 meters 11 32 1
70 cm 5 24 4 (DL, HB9 & OH via EME!)
23 cm 1 7 1
Mode/Band Current active worked Current active confirmed Total worked Total confirmed
CW 339 (need P5) 339 352 352
Phone 340 340 355 355
Mixed 340 340 356 356
RTTY  329  329 336 336
Satellite     168 138
160     216 215
80     309 307
40     346 345
30     331 330
20     354 354
17     337 337
15     348 348
12     322 320
10     342 340

Top of the Honor Roll - Mixed and Phone

DXCC Honor Roll - Mixed, Phone and CW

5 Band DXCC; 160, 30, 17, 12,  6 and 2m endorsements

RTTY DXCC

5 Band WAZ

160 meter DXCC

DXCC Challenge - 2500 endorsement; current tally is 2950 accredited

11-band Endorsement for 5Band DXCC (1st ever)

        Satellite DXCC - #38

         Satellite WAS

        6 meter DXCC - #523

6 meter WAS

6 meter VUCC - 825

2 meter DXCC - #33

2 meter WAS

2 meter VUCC - 700

Stations worked: 1146

Years on EME: 25  years

Radios (on-line):

FT-2000D - Main HF DXing and contesting radio

Elecraft K3 - DXpedition radio and second contest radio

TS-2000 - 2m EME, 70 cm EME and 2m terrestrial radio

FT-736R - 1 1/4 m and 23 cm band radio

Flex Radio 1500 for HF/6m spectrum monitoring and new VHF IF radio

RF Space SDR-IQ Software Defined Radio for panoramic spectrum display on K3 radio

FunCube Dongle PRO+ Software Defined Radio receiver for full band WSJT decoding on 2m EME

Onkyo T-4700 FM tuner Sporadic E monitoring device (88 to 108 MHz clear channel scanner)

Amplifiers (on-line):

Alpha 77 - SO2R first radio main amp

Alpha 76CA - SO2R first radio adjacent band amp

Alpha 76PA - SO2R second radio amp

Commander VHF-2000 - 6 meter amplifier, 1.5 KW output

Homebrew 8877 - 2 meter EME amplifier, 1.5 KW output

AN/AM-6155  - 1.25 meter amp, 350 Watt

AM-1565 - 70 cm 500 Watt amplifier

Antennas currently installed:

160 meters .25 w/l Sloping vertical with four .25 w/l elevated radials

80 meters:

3 element vertical array

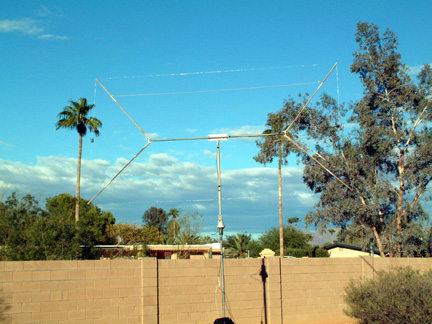

 LF rx antenna #1 New Waller Flag antenna completed May 2013:

Rotatable flag receiving antenna for 160 m

LF rx antenna #2 Download my IDXC 2013 presentation on Low Frequency RX antennas from the link below:

4 square rx array using vertical dipoles

40 thru 10 meters: Moseley PRO-67C3 at 74 feet
6 meters:  M2 6M7 yagi at 85 feet
2 meters:  Six times 3.2 wavelength DJ9BV array (see photo above)
1.25 meters M2 222-7WL seven wavelength yagi at 90 feet
70 cm: M2 432-13LWA 13 wavelength yagi (38 element) at 80 feet
23 cm:  44 element yagi at 30 feet
VHF log periodic 48 to 200 MHz log periodic for VHF propagation studies

New 2m EME array - 8 X 2M5WL on horizontal polarization and 8 X 11 element yagis on vertical polarization

HF high-power diplexer to share multi-band HF antennas between two stations. Complete. Project summary to be posted soon here.


Contact me by email at:  aa7a "at" cox "dot" net
